Expected-Loss and Credit-Risk Measurement Calculations - Article

Introduction

Credit-risk measurement converts the possibility of borrower default into measurable risk parameters.

For numerical questions, three parameters are especially important:

• Probability of Default (PD) — likelihood that the borrower will default;

• Loss Given Default (LGD) — proportion of exposure that may be lost if default occurs; and

• Exposure at Default (EAD) — amount expected to be exposed when default occurs.

The current IIBF 2026 CAIIB syllabus places Credit Risk within BFM Module B and specifically includes credit-risk measurement. The syllabus covers risk identification, measurement, monitoring and mitigation. IIBF also states that some CAIIB subjects may contain numerical questions where candidates must key in the answer without MCQ options, making calculation accuracy particularly important.

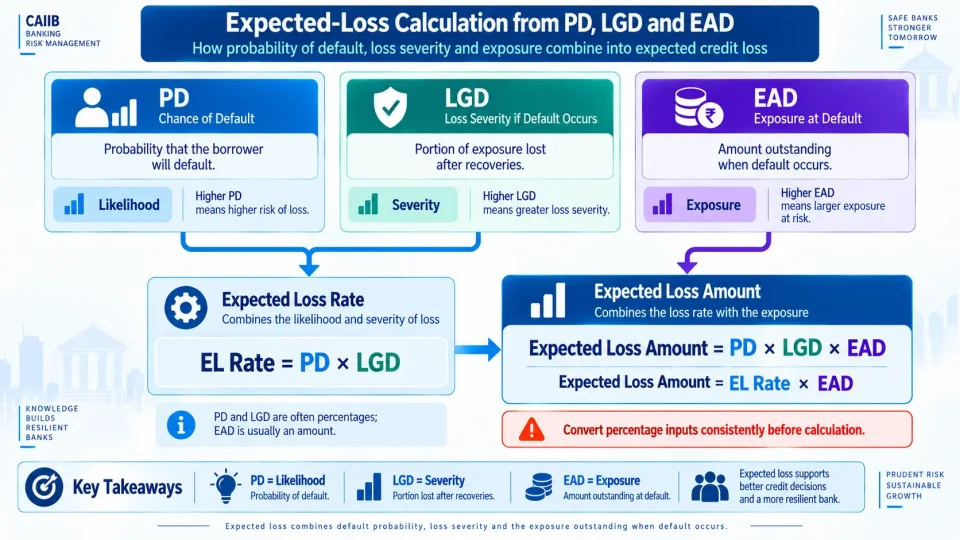

The central numerical relationship is:

PD → likelihood of default

LGD → severity of loss after default

EAD → exposure present at default

Together, they determine expected credit loss.

Learning Objectives

After studying this topic, you should be able to:

• interpret PD, LGD and EAD correctly in numerical questions;

• calculate expected-loss rates and expected-loss amounts;

• convert percentages correctly before calculation;

• understand the relationship between recovery rate and LGD;

• recognise why EAD can differ from current outstanding;

• aggregate expected losses across multiple exposures;

• distinguish expected loss from unexpected loss; and

• avoid common CAIIB calculation errors.

Expected Loss: Basic Concept

Expected Loss represents the credit loss that can be anticipated statistically from a portfolio or exposure over the relevant risk horizon.

It does not mean that the bank will definitely suffer that exact loss.

Instead, it combines:

1. the chance that default occurs;

2. the proportion likely to be lost if default occurs; and

3. the amount exposed when default occurs.

Under the current Basel IRB framework, expected loss for non-defaulted corporate, sovereign, bank and retail exposures is based on PD and LGD, while the monetary expected-loss amount is obtained by applying that loss rate to EAD.

Expected-Loss Rate

Expected Loss Rate = PD × LGD

This calculates the expected loss as a proportion of the exposure before applying EAD.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

Suppose a numerical question gives PD and LGD as percentages. Both percentages must be handled consistently.

For example, a stated percentage is normally converted into decimal form before multiplication unless the calculation is being performed entirely in percentage terms.

This is one of the most common sources of numerical error.

Expected-Loss Amount

Expected Loss Amount = PD × LGD × EAD

This combines default likelihood, loss severity and exposure size to express expected loss in monetary terms.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

The dimensions are important:

Therefore, if a question asks for expected loss in rupees, the final answer should normally be a monetary amount.

If it asks for the expected-loss percentage or rate, EAD may not be required.

Basel Terminology: EL vs EL Amount

This distinction can prevent an important exam mistake.

Under Basel's current IRB treatment:

• EL for relevant non-defaulted exposures is calculated from PD × LGD; and

• EL amount is obtained by multiplying the EL by EAD.

Therefore, in simplified exam language, the expression:

PD × LGD × EAD

represents the monetary expected-loss amount.

Step 1: Understand Probability of Default

PD measures the likelihood of default.

Under the Basel IRB framework, PD for corporate, sovereign and bank exposures is generally the one-year probability of default associated with the borrower's internal rating grade.

If PD increases while LGD and EAD remain unchanged:

Expected loss increases.

If PD decreases:

Expected loss decreases.

Therefore, weaker borrower credit quality generally produces a higher expected-loss estimate.

Numerical Interpretation

A PD stated as a percentage represents a probability and must be used accordingly in the calculation.

Do not confuse:

• percentage;

• decimal probability; and

• absolute number of defaults.

For expected-loss calculations, the required input is normally the probability, not simply the count of historical defaulted accounts.

Step 2: Understand Loss Given Default

LGD measures the percentage of EAD that is lost if default occurs.

Basel specifies that LGD is measured as loss given default as a percentage of EAD for applicable own-LGD estimates.

LGD is influenced by factors such as:

• collateral;

• guarantees;

• seniority;

• recovery value;

• recovery costs;

• time required for recovery; and

• economic conditions.

A high LGD means severe loss after default.

A low LGD means better expected recovery.

LGD and Recovery Rate

Credit-risk numerical questions may provide Recovery Rate instead of LGD.

LGD = 1 − Recovery Rate

This converts the proportion expected to be recovered into the proportion expected to be lost.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

The reverse relationship is:

Recovery Rate = 1 − LGD

This converts the loss proportion into the corresponding recovery proportion.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

The percentage form follows exactly the same economic relationship.

For example, higher recovery implies lower LGD.

Therefore:

Recovery ↑ → LGD ↓ → Expected Loss ↓

provided PD and EAD remain unchanged.

Gross Recovery vs Net Recovery

In more detailed credit-risk measurement, recovery should not be viewed only as the gross value eventually received.

Loss severity can also be affected by:

• legal costs;

• collection expenses;

• time delay;

• deterioration in collateral value; and

• other recovery-related costs.

For CAIIB numerical interpretation, follow the information provided in the question. Do not introduce assumptions that are not stated.

Step 3: Understand Exposure at Default

EAD represents the expected amount exposed when default occurs.

Basel defines EAD for relevant own-estimate purposes as the expected gross exposure of a facility upon default. For on-balance-sheet items, EAD should generally not be estimated below the current drawn amount, subject to specified framework rules.

For a simple fully drawn loan, the amount outstanding may closely represent the relevant exposure.

For revolving and partly undrawn facilities, however:

Current outstanding may not equal EAD.

A borrower experiencing financial stress may draw additional funds before default.

This is especially important for:

• cash-credit limits;

• overdrafts;

• credit cards;

• revolving facilities; and

• undrawn commitments.

Basel explicitly requires consideration of potential additional drawings before default for relevant exposures.

EAD Where a Credit Conversion Factor Is Given

In simplified examination calculations involving an undrawn commitment, the question may provide a Credit Conversion Factor (CCF).

EAD = Drawn Amount + (CCF × Undrawn Amount)

This provides a simplified way to include the expected utilisation of an undrawn commitment when the applicable CCF is supplied.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

Do not automatically apply an assumed CCF.

Regulatory CCF treatment depends on the type of exposure and applicable framework. Use the value stated in the question or the specifically applicable regulatory value.

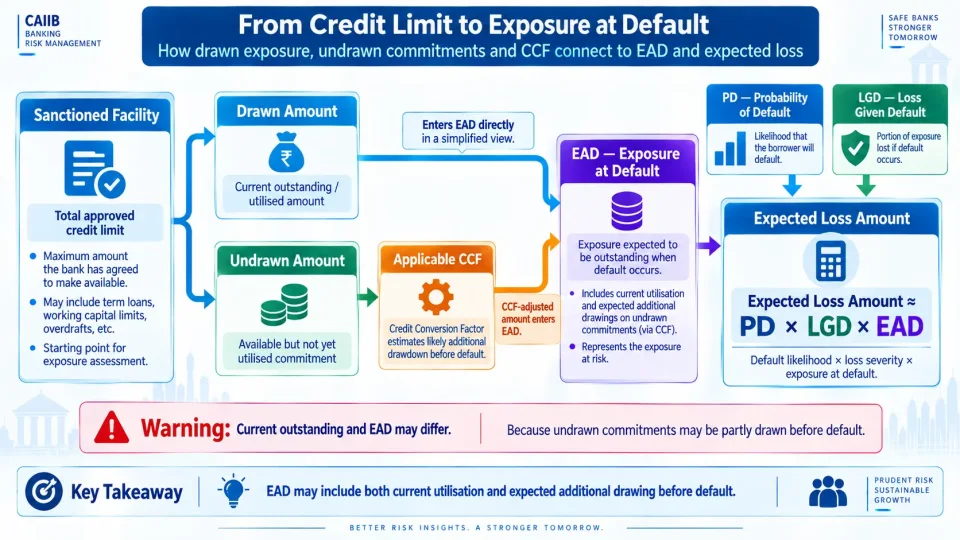

Drawn and Undrawn Exposure

A useful calculation sequence is:

Sanctioned limit → Identify drawn portion → Identify undrawn portion → Apply relevant CCF where required → Determine EAD

The main trap is assuming that the entire sanctioned limit, current outstanding or undrawn amount automatically equals EAD.

The question wording determines the correct treatment.

Calculation Sequence for Expected Loss

When a CAIIB numerical question contains several inputs, follow a fixed sequence.

Step 1: Identify What Is Asked

Determine whether the question wants:

• PD;

• LGD;

• recovery rate;

• EAD;

• expected-loss rate;

• expected-loss amount; or

• portfolio expected loss.

Do not start multiplying numbers until the required output is clear.

Step 2: Standardise Percentage Inputs

Check whether PD and LGD are given as:

• percentages; or

• decimals.

Convert them consistently.

Step 3: Derive Missing LGD if Required

If recovery rate is given instead of LGD, first determine the loss portion.

Step 4: Determine EAD

Check whether the exposure is:

• fully drawn;

• partly drawn;

• revolving;

• off-balance-sheet; or

• subject to a supplied CCF.

Step 5: Calculate Expected-Loss Rate

Combine PD and LGD when the question requires the loss rate.

Step 6: Calculate Monetary Expected Loss

Apply the expected-loss rate to EAD when a monetary answer is required.

Step 7: Check the Unit

The final result may need to be expressed as:

• percentage;

• decimal;

• rupees;

• lakh;

• crore; or

• another specified unit.

Step 8: Perform a Reasonableness Check

Expected loss should normally behave logically:

• higher PD → higher EL;

• higher LGD → higher EL;

• higher EAD → higher EL;

• higher recovery → lower EL.

If your answer violates these relationships without a specific reason, recheck the calculation.

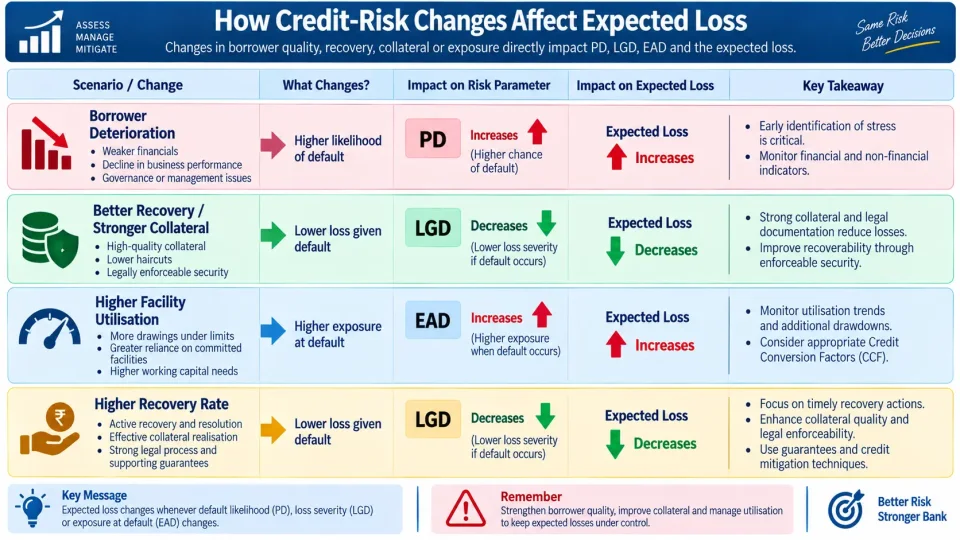

Effect of Changing One Risk Parameter

For examination purposes, understand the directional relationships.

Because the basic expected-loss relationship is multiplicative, proportional changes in one parameter directly affect EL when the other parameters remain unchanged.

Portfolio Expected Loss

Banks normally manage credit risk across many borrowers rather than one account.

For a portfolio, the expected-loss amounts of the relevant individual exposures can be aggregated.

Portfolio Expected Loss = Σ Individual Expected Loss Amounts

This calculates the portfolio's total expected-loss amount by adding the expected losses of its constituent exposures.

Refer to the Formula Section for a detailed explanation, variables, and solved examples.

This arithmetic aggregation should not be confused with the measurement of unexpected portfolio risk, where correlations and diversification become much more important.

Expected loss and portfolio unexpected loss therefore should not be treated as identical concepts.

Expected Loss vs Unexpected Loss

Expected Loss represents the loss that is statistically anticipated from normal credit experience.

Unexpected Loss represents adverse loss beyond the expected level.

Under the Basel IRB framework, risk-weight functions are designed to address unexpected losses, while expected losses receive separate treatment.

Multiple Borrowers with Different Risk Profiles

When a numerical case contains several borrowers, calculate each exposure using its own applicable parameters.

Do not:

• average PD first unless specifically required;

• average LGD without considering exposure weights;

• assume identical recovery for all borrowers; or

• multiply a portfolio's total EAD by an unweighted average of borrower parameters unless the question specifically permits it.

Different borrowers may have:

• different PDs;

• different collateral;

• different LGDs; and

• different exposure sizes.

A small high-risk account and a large low-risk account therefore should not automatically receive equal weight.

Exposure-Weighted Interpretation

Portfolio calculations often require awareness of exposure size.

A borrower with a very high PD but very small EAD may contribute less absolute expected loss than a much larger exposure with a lower PD.

Therefore, distinguish:

Risk rate from rupee risk amount.

This is a common source of case-study and numerical confusion.

Credit Mitigation and Expected Loss

Credit-risk mitigation can affect expected-loss calculations through the relevant risk parameters.

For example:

Collateral

Effective collateral normally improves expected recovery and therefore can reduce LGD under the applicable framework.

Guarantee

A valid guarantee may alter the risk treatment depending on the regulatory method being applied.

Reduction in Limit

Reducing potential exposure may reduce EAD.

Improvement in Borrower Quality

A genuine improvement in credit quality may reduce PD.

Therefore, different risk mitigants can affect different parts of the expected-loss calculation.

Practical Banking Application

Consider a bank monitoring its corporate and retail credit portfolio.

For each relevant exposure, risk systems may maintain:

• internal rating;

• PD estimate;

• collateral and recovery information;

• LGD;

• current utilisation;

• undrawn commitment;

• EAD estimate; and

• expected-loss amount.

A borrower downgrade may increase PD.

A fall in collateral value may increase LGD.

Additional drawing of a revolving facility may increase EAD.

If all three deteriorate simultaneously, expected loss can rise sharply.

This shows why credit-risk measurement is dynamic. It is not simply a calculation performed once when the loan is sanctioned.

CAIIB Exam Focus

Remember these high-value points:

• PD measures default likelihood.

• LGD measures loss severity after default.

• EAD measures exposure at default.

• Expected-loss rate and expected-loss amount are different.

• PD and LGD must be treated consistently as decimals or percentages.

• A recovery rate is not the same as LGD.

• Higher recovery means lower LGD.

• Current outstanding and EAD may differ.

• Undrawn commitments may contribute to EAD.

• Use a CCF only when appropriate to the exposure or provided in the question.

• Expected loss increases when PD, LGD or EAD increases, other things remaining constant.

• A stronger collateral position generally affects recovery/LGD rather than automatically reducing the borrower's probability of default.

• Portfolio expected-loss amounts can be aggregated across exposures.

• A portfolio's rupee expected loss depends on both risk percentage and exposure size.

• Expected loss and unexpected loss are different.

• Regulatory expected loss and accounting provisions should not automatically be treated as identical.

Common Exam Traps

Trap 1: Using Percentage Values as Whole Numbers

If PD and LGD are given as percentages, multiplying the displayed percentage numbers directly without consistent conversion can materially overstate the result.

Trap 2: Treating Recovery Rate as LGD

Recovery and loss are opposite parts of the same exposure. Higher recovery means lower loss severity.

Trap 3: Ignoring EAD

PD × LGD gives a loss rate, not necessarily the monetary loss amount.

Trap 4: Treating Current Outstanding as EAD in Every Case

This may be wrong for revolving or undrawn facilities where additional utilisation before default is possible.

Trap 5: Using the Entire Sanctioned Limit Automatically as EAD

EAD depends on the applicable exposure treatment. The sanctioned amount should not automatically be substituted for EAD.

Trap 6: Assuming Higher Collateral Directly Reduces PD

Collateral primarily improves recovery and may therefore reduce LGD. It does not necessarily change the borrower's underlying likelihood of default.

Trap 7: Averaging Borrower Risk Without Considering Exposure Size

An unweighted average may give a misleading portfolio picture when individual EADs differ substantially.

Trap 8: Confusing Expected Loss with Maximum Loss

Expected loss is an average statistical expectation, not the maximum loss that the bank can suffer.

Trap 9: Treating Expected Loss and Unexpected Loss as Identical

They represent different parts of the credit-loss distribution and have different risk-management implications.

Trap 10: Giving the Correct Number in the Wrong Unit

A result stated as a percentage when the question asks for rupees—or rupees when the question asks for a rate—is not the required answer.

Memory Technique

Remember P–L–E:

P — PD = Probability of defaultL — LGD = Loss severityE — EAD = Exposure size

Then remember the calculation direction:

Probability × Loss Severity → Loss Rate

Loss Rate × Exposure → Loss Amount

For recovery questions:

Higher Recovery → Lower LGD → Lower Expected Loss

For EAD questions:

Do not ask only “How much is outstanding now?”

Also ask:

“How much could be exposed when default actually occurs?”
