Liquidity Monitoring Tools and Integrated Basel III Cases - Article

Introduction

The Liquidity Coverage Ratio (LCR) and Net Stable Funding Ratio (NSFR) are the two main Basel III minimum quantitative liquidity standards.

However, two ratios cannot capture every liquidity risk faced by a bank.

A bank may have:

• LCR above 100%;

• NSFR above 100%; and

• adequate total liquidity,

but still face problems because:

• a large amount of funding matures on one date;

• funding depends heavily on a few counterparties;

• available collateral cannot be mobilised quickly;

• liquidity is concentrated in the wrong currency;

• market confidence is deteriorating; or

• payments must be made before expected intraday receipts arrive.

Basel therefore supplements LCR and NSFR with liquidity-risk monitoring tools.

The current Basel Framework lists monitoring tools covering:

• contractual maturity mismatch;

• concentration of funding;

• available unencumbered assets;

• LCR by significant currency;

• market-related monitoring tools; and

• intraday liquidity monitoring.

The 2026 IIBF BFM syllabus specifically includes Liquidity Risk Monitoring Tools under the Basel III Framework on Liquidity Standards.

For CAIIB, the central idea is:

LCR and NSFR show important regulatory ratios; monitoring tools explain where the underlying liquidity vulnerability may actually be developing.

Learning Objectives

After studying this topic, you should be able to:

• explain the purpose of Basel liquidity monitoring tools;

• distinguish monitoring tools from LCR and NSFR;

• identify maturity, concentration, collateral and currency risks;

• understand market and intraday liquidity indicators;

• combine several liquidity measures in a case study; and

• avoid common CAIIB interpretation traps.

Why Monitoring Tools Are Required

Basel states that LCR and NSFR are minimum quantitative standards, while monitoring tools measure other dimensions of a bank's liquidity and funding-risk profile.

They help supervisors understand:

• cash-flow timing;

• balance-sheet structure;

• funding dependence;

• available collateral;

• currency mismatches;

• market confidence; and

• payment-system liquidity.

Therefore:

LCR + NSFR + Monitoring Tools = Broader Liquidity View

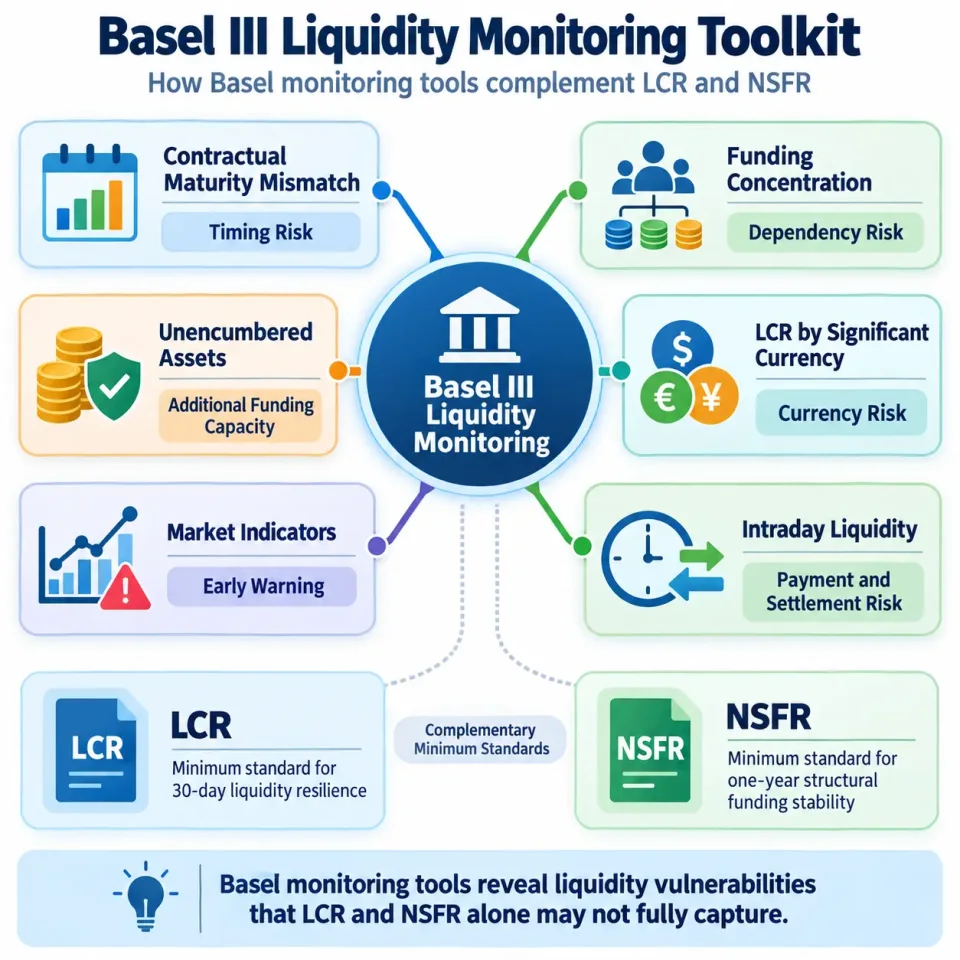

Main Basel III Liquidity Monitoring Tools

These tools complement rather than replace the bank's own stress testing, MIS and liquidity-risk management.

1. Contractual Maturity Mismatch

The contractual maturity mismatch profile maps contractual:

• cash inflows;

• cash outflows; and

• security flows

into time bands based on residual contractual maturity.

It identifies periods where contractual outflows exceed contractual inflows and shows how much additional liquidity the bank might need if contractual payments occur as scheduled.

Why It Is Important

A bank can have a good LCR but still face a large funding requirement after the LCR's 30-day horizon.

Example

Suppose a bank has:

• excellent liquidity for the next month;

• but a large block of wholesale borrowing maturing in two months.

The LCR may not fully reveal this maturity cliff.

The contractual mismatch profile does.

Contractual vs Behavioural View

The Basel monitoring metric focuses on contractual maturity.

A bank's internal liquidity analysis should additionally consider behavioural assumptions such as:

• deposit stability;

• premature withdrawals;

• loan prepayments; and

• rollover expectations.

2. Concentration of Funding

Funding concentration asks whether loss of one important funding source could create a liquidity problem.

Basel monitors concentration through:

• significant counterparties;

• significant funding products or instruments; and

• significant currencies.

Significant Counterparty

For this Basel monitoring metric, a counterparty or connected group accounting for more than 1% of the bank's total balance sheet is treated as significant, subject to the broader supervisory context.

Significant Product or Instrument

A single funding product or group of similar instruments exceeding 1% of the bank's total balance sheet is also considered significant for this monitoring purpose.

Significant Currency

A currency is significant where liabilities denominated in that currency amount to 5% or more of total liabilities.

Why Concentration Can Be Hidden

A bank may have funding from 100 counterparties but still be concentrated if:

• all funding is overnight;

• all funding comes through one instrument;

• most funding is in one currency; or

• counterparties behave similarly during stress.

Basel specifically warns that apparently diversified counterparties may still withdraw simultaneously during market-wide stress.

3. Available Unencumbered Assets

A bank may hold assets that are not part of its current HQLA stock but could still be used to raise additional liquidity.

Basel therefore monitors available unencumbered assets that could potentially support:

• secured borrowing in secondary markets; or

• normal central-bank standing facilities.

The bank should know:

• amount;

• asset type;

• currency;

• location;

• applicable haircut; and

• operational ability to mobilise the asset.

For central-bank-eligible collateral, Basel requires the necessary operational procedures for monetisation to already be in place.

HQLA vs Available Unencumbered Assets

These concepts are related but different.

HQLA

Qualifying assets included in the LCR buffer under prescribed eligibility rules.

Available Unencumbered Assets

A wider monitoring view of assets that may potentially generate additional secured liquidity.

Therefore:

Not every available unencumbered asset is necessarily HQLA.

But it can still be important in a funding crisis.

4. LCR by Significant Currency

A bank may satisfy its overall LCR but still face a shortage in a particular foreign currency.

Basel therefore requires monitoring of LCR in significant currencies.

Example

A bank has:

• strong INR HQLA;

• large USD liabilities; and

• insufficient USD liquid assets.

Its overall LCR may appear comfortable.

But the bank depends on:

• foreign-currency borrowing; or

• FX swaps

to obtain dollars.

During stress, those markets may become expensive or unavailable.

Important Basel Distinction

The LCR by significant currency is a monitoring tool, not a Basel minimum ratio with a universally prescribed international threshold.

Basel specifically states that there is no internationally defined minimum for the foreign-currency LCR, although national supervisors may set monitoring thresholds.

5. Market-Related Monitoring Tools

Liquidity ratios are generally calculated periodically.

Markets can change much faster.

Basel therefore encourages supervisors to monitor high-frequency market information as potential early-warning indicators.

Relevant information can be considered at three levels:

1. market-wide;

2. financial-sector; and

3. bank-specific.

Examples include movements in:

• equity prices;

• money markets;

• bond yields;

• debt spreads;

• credit-default-swap spreads;

• foreign-exchange markets; and

• other relevant financial markets.

Why Market Indicators Matter

Suppose a bank's LCR remains above 100%.

At the same time:

• its bond spread widens sharply;

• its share price falls;

• wholesale funding cost rises; and

• lenders begin shortening maturities.

The regulatory ratio may still look satisfactory because the balance-sheet effect has not yet fully appeared.

Market indicators may therefore provide an earlier warning.

6. Intraday Liquidity Monitoring

A bank can be liquid at the end of the day but still fail to make a payment at 10:00 a.m.

That is why Basel separately monitors intraday liquidity.

Intraday liquidity is important because banks must meet:

• payment-system obligations;

• securities settlements;

• money-market repayments;

• margin payments; and

• other time-specific obligations

at the required time.

Basel's framework contains seven intraday monitoring tools grouped according to the bank's role in payment and correspondent-banking systems.

Tools Applicable to All Reporting Banks

These include:

• daily maximum intraday liquidity usage;

• available intraday liquidity at the start of the day;

• total payments; and

• time-specific obligations.

Correspondent Banks

Additional tools monitor:

• payments made on behalf of correspondent-banking customers; and

• intraday credit lines extended to customers.

Direct Participants

Basel also monitors intraday throughput for relevant direct participants.

A time-specific obligation is particularly important because late settlement can result in:

• financial penalties;

• reputational damage; or

• disruption to other institutions.

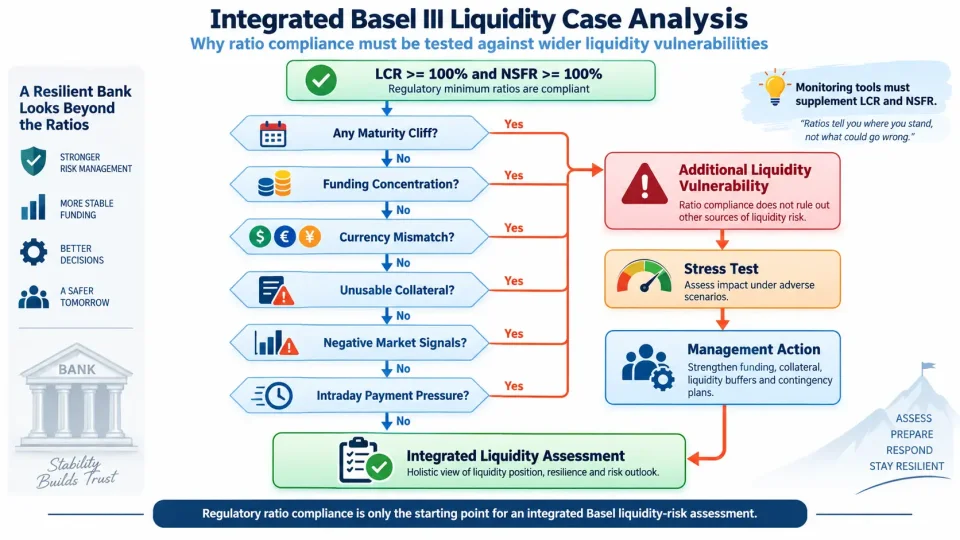

Integrated Basel III Case 1: Strong LCR but Funding Concentration

A bank reports:

• LCR comfortably above 100%;

• NSFR above 100%; and

• substantial HQLA.

However, a large share of its wholesale funding comes from three institutional counterparties.

All three institutions use similar investment strategies.

Analysis

The bank satisfies the main quantitative ratios, but funding-concentration monitoring reveals an important vulnerability.

If negative news affects the bank, all three counterparties may:

• reduce exposure;

• refuse rollover; or

• demand higher pricing.

Basel specifically recognises the possibility of herding behaviour among funding counterparties.

Correct Management View

Management should consider:

• diversification;

• alternative funding;

• maturity staggering;

• stress testing; and

• additional liquidity protection.

CAIIB Lesson

Strong LCR and NSFR do not eliminate funding-concentration risk.

Integrated Basel III Case 2: Good LCR but a Maturity Cliff

A bank's LCR is 120%.

Most immediate obligations are well covered.

However, a large amount of wholesale borrowing matures shortly after the 30-day LCR horizon.

Analysis

LCR measures a prescribed 30-day stress period.

The contractual maturity mismatch tool highlights the large upcoming funding requirement.

The bank therefore faces refinancing risk beyond the LCR horizon.

Correct Management View

The bank should not wait until maturity approaches.

It may need to:

• extend funding tenor;

• stagger maturities;

• pre-fund requirements; or

• increase alternative funding capacity.

CAIIB Lesson

The contractual maturity profile can reveal a liquidity cliff that a single 30-day ratio may not show.

Integrated Basel III Case 3: Overall LCR Strong, USD Position Weak

A bank has:

• strong overall LCR;

• large INR liquidity;

• material USD liabilities; and

• relatively low USD HQLA.

Management expects to obtain dollars through FX swaps whenever required.

Analysis

The significant-currency LCR highlights the mismatch.

Basel requires consideration of:

• foreign-currency funding access; and

• ability to transfer liquidity between currencies, jurisdictions and legal entities.

During stress, FX swap markets may become:

• expensive;

• shallow; or

• unavailable.

Correct Management View

The bank should assess:

• USD funding diversification;

• foreign-currency liquid assets;

• swap-market stress; and

• contingency funding in dollars.

CAIIB Lesson

Liquidity in the wrong currency may not solve the actual payment requirement.

Integrated Basel III Case 4: Large Collateral Pool but Limited Usability

A bank reports a large amount of securities as potential collateral for emergency secured funding.

However:

• some assets are located in a foreign subsidiary;

• some require documentation before they can be pledged;

• others attract very high stressed haircuts.

Analysis

The nominal value of the collateral portfolio overstates actual liquidity capacity.

The available-unencumbered-assets metric focuses on:

• location;

• eligibility;

• haircuts; and

• operational ability to monetise collateral.

Correct Management View

The bank should identify how much liquidity can genuinely be obtained:

• immediately;

• in the required jurisdiction;

• in the required currency; and

• after applicable haircuts.

CAIIB Lesson

Asset value is not the same as immediately available funding capacity.

Integrated Basel III Case 5: Ratios Stable but Market Signals Deteriorate

A bank reports:

• LCR at 115%;

• NSFR at 108%; and

• no major maturity-limit breach.

During the same period:

• its debt spread widens;

• wholesale funding cost rises;

• market rumours increase; and

• some counterparties shorten lending maturities.

Analysis

The balance-sheet ratios remain above minimum standards.

But market-related indicators suggest deteriorating confidence.

These signals should not be ignored simply because regulatory ratios remain compliant.

Correct Management View

Management should examine:

• funding-provider behaviour;

• deposit trends;

• collateral requirements;

• concentration;

• contingency funding readiness; and

• liquidity stress scenarios.

CAIIB Lesson

Market indicators may deteriorate before regulatory ratios visibly weaken.

Integrated Basel III Case 6: End-of-Day Liquidity Is Positive but Payment Is Missed

A bank expects:

• ₹1,000 crore of incoming payments during the day; and

• ₹900 crore of outgoing payments.

It therefore expects an end-of-day liquidity surplus.

However, ₹700 crore must be paid early in the morning, while most incoming payments arrive in the afternoon.

Analysis

End-of-day liquidity is not the problem.

The issue is intraday timing.

Basel's intraday framework specifically monitors:

• maximum intraday liquidity usage;

• liquidity available at the start of the day;

• total payments; and

• time-specific obligations.

Correct Management View

The bank needs enough intraday resources through:

• opening balances;

• available collateral;

• secured intraday facilities; or

• other reliable sources

to settle the morning payment on time.

CAIIB Lesson

End-of-day surplus does not guarantee intraday liquidity adequacy.

Integrated Basel III Case 7: LCR and NSFR Both Compliant

A bank has:

• LCR above 100%;

• NSFR above 100%;

• a strong reported HQLA stock.

Further analysis shows:

• large wholesale funding concentration;

• a maturity cliff in two months;

• significant USD liabilities;

• rising market funding spreads;

• low morning intraday liquidity; and

• much of the additional collateral located overseas.

Analysis

No single metric gives the complete answer.

LCR

Shows short-term 30-day stress resilience.

NSFR

Shows broader structural funding stability.

Contractual Mismatch

Reveals the two-month refinancing cliff.

Funding Concentration

Shows dependence on wholesale providers.

Significant-Currency LCR

Highlights the USD vulnerability.

Market Indicators

Show weakening confidence and increasing funding cost.

Intraday Tools

Show possible payment-timing pressure.

Unencumbered-Asset Monitoring

Questions whether overseas collateral can actually be mobilised when needed.

Correct Decision

The bank should assess the combined liquidity profile, rather than declaring itself safe merely because LCR and NSFR exceed 100%.

Possible measures include:

• diversify funding;

• extend funding maturity;

• strengthen USD liquidity;

• mobilise usable collateral;

• increase intraday liquidity;

• intensify monitoring; and

• update stress and contingency plans.

Monitoring Tools vs Minimum Standards

Basel explicitly states that the monitoring tools are for monitoring purposes and can be supplemented by national supervisors with additional jurisdiction-specific measures.

CAIIB Case-Study Framework

Use M–C–A–C–I.

M — Maturity

When are contractual cash deficits concentrated?

C — Concentration

Who or what provides the funding?

A — Available Assets

Which unencumbered assets can actually be monetised?

C — Currency

Is liquidity available in the currency in which obligations must be paid?

I — Intraday and Indicators

Can obligations be settled at the correct time, and are market signals deteriorating?

Then finally ask:

What do LCR and NSFR show when all these risks are considered together?

CAIIB Exam Focus

Remember these high-value concepts:

• LCR and NSFR are Basel minimum quantitative standards.

• Basel liquidity monitoring tools assess other dimensions of liquidity risk.

• Contractual maturity mismatch identifies timing gaps based on contractual cash flows.

• Funding concentration examines counterparties, products/instruments and currencies.

• A significant funding counterparty generally exceeds 1% of the bank's total balance sheet for the Basel monitoring metric.

• A significant funding product/instrument similarly exceeds 1%.

• A significant currency generally represents at least 5% of total liabilities.

• These thresholds identify items for monitoring; they are not universal maximum concentration limits.

• Available unencumbered assets may provide additional secured liquidity.

• Location, currency, haircut and operational usability of collateral matter.

• Not every unencumbered asset is necessarily HQLA.

• LCR by significant currency helps identify foreign-currency mismatch.

• Basel does not prescribe one international minimum ratio for significant-currency LCR.

• Market indicators can provide early warning before accounting ratios deteriorate.

• Intraday liquidity is different from end-of-day liquidity.

• Time-specific payment obligations must be met when due.

• Basel's intraday tools include maximum liquidity usage, opening liquidity, total payments and time-specific obligations.

• Correspondent banking and direct participation can create additional intraday monitoring requirements.

• Combining monitoring tools gives a more complete view than using any one metric alone.

• LCR and NSFR compliance does not guarantee absence of liquidity risk.

Common Exam Traps

Trap 1: “LCR and NSFR capture every liquidity risk.”

Incorrect. Basel specifically supplements them with liquidity monitoring tools.

Trap 2: “Contractual maturity mismatch is the same as behavioural liquidity forecasting.”

Incorrect. The Basel monitoring metric starts from contractual cash-flow timing.

Trap 3: “A significant counterparty above 1% has breached a universal Basel concentration limit.”

Incorrect. The threshold identifies significant funding for monitoring.

Trap 4: “A bank with many counterparties is automatically well diversified.”

Incorrect. It may still be concentrated by product, maturity, currency or market behaviour.

Trap 5: “Every available unencumbered asset qualifies as HQLA.”

Incorrect. The monitoring category is broader than the LCR HQLA definition.

Trap 6: “Overall LCR above 100% means every significant currency also has adequate liquidity.”

Incorrect. Currency-specific mismatches may remain.

Trap 7: “Significant-currency LCR must always be at least 100% under Basel.”

Incorrect. Basel treats it as a monitoring metric without one internationally defined minimum threshold.

Trap 8: “Good end-of-day liquidity proves adequate intraday liquidity.”

Incorrect. Payments may be due before expected receipts arrive.

Trap 9: “Market indicators matter only after a liquidity ratio falls below its minimum.”

Incorrect. Their value lies partly in providing early warning.

Trap 10: “If LCR and NSFR are compliant, management need not investigate other adverse indicators.”

Incorrect. Liquidity risk must be assessed through multiple complementary measures.

Memory Technique

Remember M–F–A–C–M–I:

M — Maturity mismatchF — Funding concentrationA — Available unencumbered assetsC — Currency LCRM — Market indicatorsI — Intraday liquidity

The central CAIIB principle is:

LCR and NSFR tell whether key Basel liquidity standards are met; monitoring tools tell where the next liquidity problem may be developing.
