RCSA, Key Risk Indicators and Internal Loss Data - Article

Introduction

Operational risk cannot be managed effectively only by recording losses after they occur.

Banks need tools that answer three different questions:

• RCSA: What can go wrong, how strong are our controls and what risk remains?

• KRI: Is operational risk increasing or approaching an unacceptable level?

• Internal Loss Data: What operational-risk events have actually happened and what did they cost?

These tools complement one another.

RCSA → identifies and assesses risk

KRI → continuously monitors changes in risk

Loss Data → provides evidence from actual events

The current 2026 IIBF syllabus specifically covers Collection of Internal Loss Data and External Loss Data and Risk and Control Self-Assessment (RCSA) & Key Risk Indicator (KRI). It includes inherent risk, effectiveness of controls, risk zones, colour-coded risk levels, selection and use of KRIs, risk appetite, near misses and root-cause analysis. In the official 2026 BFM syllabus, these topics appear under Module D: Operational Risk.

Current Basel operational-risk guidance likewise treats self-assessments, operational-risk event data and risk metrics as important tools for identifying, assessing and monitoring operational risk.

Learning Objectives

After studying this topic, you should be able to:

• explain the purpose and process of RCSA;

• distinguish inherent risk from residual risk;

• assess the role and effectiveness of controls;

• explain KRIs and their thresholds;

• distinguish KRIs from performance indicators;

• understand the purpose of internal operational-loss data;

• distinguish gross loss, recovery, net loss and near miss;

• connect RCSA, KRIs and loss events; and

• solve operational-risk case studies systematically.

Risk and Control Self-Assessment — RCSA

RCSA is a structured process through which a business or operational unit identifies its important operational risks, evaluates the controls used to manage them and determines the risk remaining after those controls.

Basel describes self-assessments as evaluations that typically consider:

• inherent risk;

• effectiveness of the control environment; and

• residual risk after controls.

The assessment normally considers both the likelihood and impact of operational-risk events.

The basic relationship is:

Inherent Risk → Apply Controls → Residual Risk

What Is Inherent Risk?

Inherent risk is the level of risk present before considering the effect of controls.

Suppose a bank processes a very large volume of digital payments every day.

Potential inherent risks include:

• incorrect beneficiary details;

• duplicate payments;

• unauthorised transactions;

• system failures; and

• fraud.

The fact that the bank has maker-checker controls does not remove these risks from the inherent-risk assessment.

Inherent risk asks:

How serious would this activity be if the relevant controls were absent or ineffective?

Control Identification

After identifying inherent risks, the bank identifies controls designed to:

• prevent;

• detect; or

• respond to

the risk.

Examples include:

• maker-checker control;

• transaction limits;

• access restrictions;

• reconciliations;

• system validation;

• exception reports;

• supervisory review;

• CCTV;

• password controls; and

• business continuity arrangements.

Controls should be linked to specific risks.

A control existing somewhere in the process does not automatically mean that it effectively addresses the identified risk.

Control Design and Control Effectiveness

Two questions are important.

Is the Control Properly Designed?

A control may be performed correctly but still fail to address the real risk.

For example, manually checking a high-volume automated transaction process only once a month may be inadequate even if the monthly check is performed perfectly.

Is the Control Operating Effectively?

A well-designed control may exist on paper but not operate properly.

Examples:

• reconciliations are prescribed but remain pending;

• exception reports are generated but never reviewed;

• access rights are not withdrawn when employees transfer; or

• maker-checker exists but both credentials are effectively controlled by one person.

Residual Risk

Residual risk is the operational risk remaining after considering the effectiveness of existing controls.

A business activity may therefore have:

• high inherent risk;

• strong controls; and

• moderate or low residual risk.

Alternatively:

• moderate inherent risk;

• weak controls; and

• high residual risk.

The residual-risk assessment is important because it indicates whether additional action is necessary.

Risk Zones and Colour Coding

Banks may use a risk matrix to classify risks into colour-coded zones.

A common structure is:

The precise definitions and thresholds are bank-specific. There is no universal rule that every bank must use the same numerical boundaries.

Colour coding is a communication tool. It should not replace proper risk analysis.

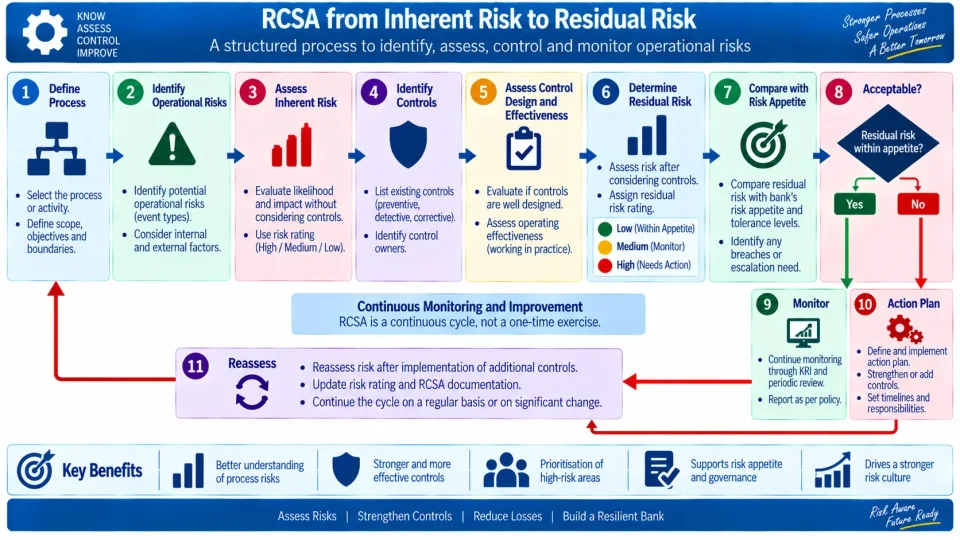

RCSA Process

A practical RCSA cycle can be understood through the following stages:

1. Define the Activity or Process

Clearly identify the process being assessed.

Examples:

• cash handling;

• loan documentation;

• NEFT/RTGS processing;

• trade-finance operations;

• treasury settlement; or

• digital onboarding.

2. Identify Operational Risks

Ask:

What can go wrong?

Consider:

• people;

• processes;

• systems; and

• external events.

3. Assess Inherent Risk

Evaluate potential:

• likelihood; and

• impact

before considering controls.

4. Identify Existing Controls

Document the key preventive, detective and responsive controls.

5. Assess Control Effectiveness

Determine whether controls are:

• properly designed;

• implemented;

• consistently performed; and

• capable of reducing the identified risk.

6. Determine Residual Risk

Assess the remaining risk after controls.

7. Compare with Risk Appetite or Tolerance

Ask whether the residual risk is acceptable.

8. Develop Corrective Action

Where risk exceeds acceptable levels, establish:

• action;

• owner;

• target completion date; and

• escalation requirement.

9. Monitor and Review

RCSA should be updated when:

• major incidents occur;

• processes change;

• new products are launched;

• systems are changed;

• controls fail; or

• external threats change.

Key Risk Indicators — KRIs

A Key Risk Indicator is a metric used to monitor exposure to an important risk or a change in the control environment.

Basel explains that operational-risk metrics provide early-warning information and should be linked clearly to the relevant risks and controls. Trends can be monitored against agreed thresholds or limits.

A KRI therefore answers:

Is the risk increasing, decreasing or approaching a level that requires action?

Examples of KRIs

Depending on the activity, KRIs may include:

• number of failed transactions;

• number of unreconciled entries;

• ageing of pending reconciliation items;

• system downtime;

• staff vacancy rate;

• employee turnover;

• number of attempted frauds;

• customer complaints;

• percentage of overdue audit observations;

• number of access-control violations;

• failed backup jobs;

• number of processing errors;

• vendor-service failures; or

• number of limit breaches.

The correct KRI depends on the risk being monitored.

Leading and Lagging Indicators

Leading Indicator

A leading KRI may provide warning before a loss occurs.

Example:

Increasing number of staff vacancies in a critical processing unit may increase future error risk.

Lagging Indicator

A lagging indicator reflects events that have already occurred.

Examples:

• number of processing losses;

• fraud losses; or

• customer compensation paid.

Both types can be useful.

A strong operational-risk system should not depend only on lagging indicators because waiting for losses means the risk has already materialised.

Selecting a Good KRI

An effective KRI should be:

• relevant to a material risk;

• measurable;

• based on reliable data;

• timely;

• understandable;

• capable of showing trends;

• linked to a threshold; and

• capable of triggering action.

A metric that cannot influence a management decision may have little value as a KRI.

KRI Thresholds

KRIs can be linked to thresholds.

For example:

Green → Normal

Amber → Warning

Red → Escalation/Action

Suppose the KRI is ageing of unreconciled high-value entries.

If ageing increases steadily, the indicator may move from green to amber before an actual financial loss occurs.

Management can then:

• investigate;

• allocate additional staff;

• resolve old entries;

• strengthen reconciliation; or

• escalate control weakness.

The exact thresholds should reflect the bank's risk appetite and the characteristics of the activity.

KRI vs KPI

A Key Performance Indicator (KPI) generally measures achievement or performance.

A Key Risk Indicator (KRI) focuses on risk exposure or deterioration in the control environment.

A metric may sometimes provide information relevant to both risk and performance, but the purposes remain different.

For example, rapidly increasing transaction volume may be a positive KPI while simultaneously increasing operational risk if staff and system capacity do not increase.

Internal Operational-Loss Data

Internal loss data record operational-risk events actually experienced by the bank.

Basel states that operational-risk event datasets commonly include:

• internal loss events;

• near misses; and

• where feasible, external operational-risk events.

Such data support operational-risk assessment and should be classified consistently according to the bank's taxonomy.

Internal loss data answer:

What has actually gone wrong in our bank?

Information Captured for a Loss Event

Useful internal loss records may include:

• business unit;

• event type;

• date of occurrence;

• date of discovery;

• accounting date;

• gross loss;

• recoveries;

• net loss;

• cause or driver;

• affected process;

• control failure;

• corrective action; and

• related incidents.

RBI's 2023 Minimum Capital Requirements for Operational Risk Directions similarly require relevant banks, under the new Standardised Approach framework, to capture occurrence, discovery and accounting dates, recoveries and descriptive information about the causes or drivers of operational-loss events.

Gross Loss, Recovery and Net Loss

Gross Loss

Gross loss is the financial loss before recoveries.

Recovery

Recovery is a subsequent inflow relating to the original operational-loss event.

Examples may include:

• insurance payment; or

• recovery from the perpetrator of fraud.

Net Loss

Net loss is the loss remaining after eligible realised recoveries.

Under RBI's 2023 Directions, recoveries can reduce loss only after payment has actually been received; a receivable is not treated as a recovery merely because recovery is expected.

Internal Loss Data and the RBI Capital Framework

A regulatory distinction is important.

RBI issued the Minimum Capital Requirements for Operational Risk Directions, 2023, containing a new Basel III Standardised Approach. The Directions specify, among other matters:

• a minimum ₹1,00,000 threshold for inclusion of a loss event in the prescribed loss dataset;

• comprehensive collection across activities and relevant geographical locations;

• independent review of accuracy and completeness; and

• use of high-quality historical loss data under the specified framework.

For the loss component under those Directions, calculation is designed around 10 years of high-quality annual operational-loss data, with specified transitional treatment where at least five years is available.

However, the Directions themselves state that their effective implementation date is to be communicated separately and that the existing operational-risk capital approach continues until then. RBI's regulatory handbook likewise describes the new Standardised Approach as the proposed approach with implementation date to be communicated.

Therefore, do not confuse:

• internal loss data as an operational-risk management tool; and

• specific loss-data requirements used for regulatory operational-risk capital calculations.

The bank may collect smaller or additional events for internal risk-management purposes even where they do not meet a particular regulatory capital-data threshold.

Near Misses

A near miss is an operational-risk event that could have caused loss but did not ultimately result in the loss, often because:

• a control detected the error;

• the transaction was reversed in time; or

• the harmful event was avoided.

Example

An employee enters a ₹50 lakh payment to the wrong beneficiary.

The maker-checker process identifies the error before authorisation.

There is no actual payment loss.

However, the event is valuable risk information because it demonstrates that:

• an error occurred; and

• a control prevented the loss.

Near-miss analysis may reveal vulnerabilities before they cause actual financial damage.

The current IIBF syllabus expressly includes Near-Misses within loss-data study.

Root-Cause Analysis

Recording that a loss occurred is not enough.

The bank should understand:

Why did it happen?

Suppose a payment was made twice.

The immediate event is duplicate payment.

Possible root causes could include:

• unclear procedures;

• system-design weakness;

• inadequate training;

• poor segregation of duties; or

• manual override.

Corrective action should address the root cause, not merely reverse the duplicate transaction.

Basel's current guidance expects operational-event management to analyse underlying causes and control weaknesses so that appropriate action can prevent recurrence.

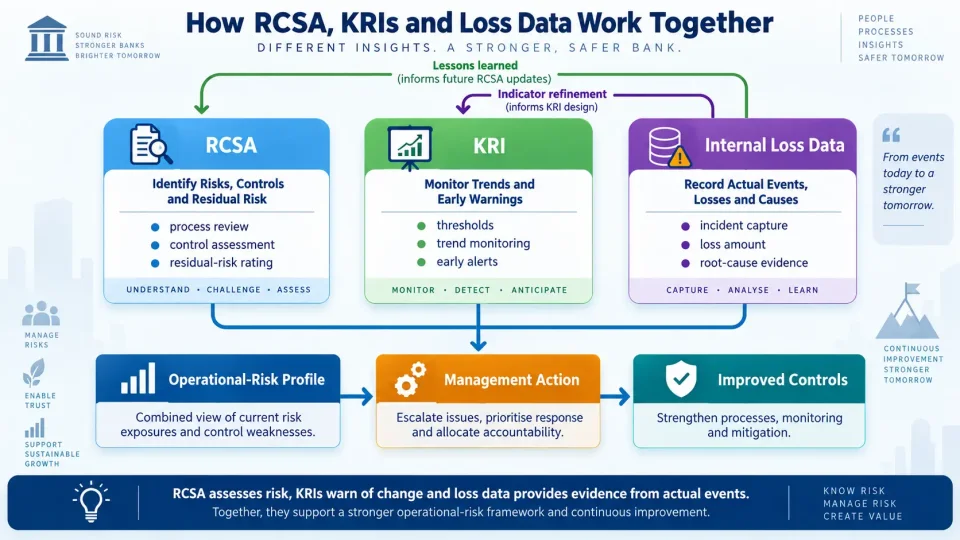

How RCSA, KRI and Loss Data Work Together

These tools should not operate independently.

Consider a bank's reconciliation process.

RCSA

Identifies the risk:

Unreconciled transactions may result in financial loss or misstatement.

It assesses inherent risk, reconciliation controls and residual risk.

KRI

Monitors:

Number and ageing of unreconciled entries.

A rising trend gives early warning.

Internal Loss Data

Shows:

Actual past losses caused by unreconciled or incorrectly reconciled transactions.

Together:

RCSA tells what may happen.

KRI tells whether risk may be increasing.

Loss data tells what has already happened.

Case Study 1: High-Risk Process but Strong Controls

A bank processes very large daily fund transfers.

Its RCSA identifies:

• high inherent fraud risk;

• high inherent processing-error risk;

• maker-checker controls;

• transaction limits;

• automated beneficiary validation; and

• real-time exception monitoring.

Control testing shows that these controls operate effectively.

Interpretation

The correct conclusion is not:

“The process has low inherent risk.”

The process still has high inherent risk because of its size and nature.

Strong controls reduce the residual risk.

CAIIB Lesson

Control strength affects residual risk, not the original inherent nature of the exposure.

Case Study 2: Green RCSA but Losses Are Increasing

A business unit's RCSA shows low residual risk.

However, internal loss data for the last six months show:

• increasing processing errors;

• rising customer compensation; and

• repeated reconciliation failures.

Its KRIs are also moving toward warning thresholds.

Correct Approach

Management should not rely blindly on the old RCSA rating.

The new evidence suggests that:

• control effectiveness may have deteriorated;

• the RCSA assumptions may be outdated; or

• important risks may have been missed.

The unit should:

• reassess controls;

• analyse root causes;

• revise the RCSA where appropriate;

• reconsider KRI thresholds; and

• implement corrective action.

CAIIB Lesson

RCSA is not a permanent rating. Actual events and KRI trends should feed back into the assessment.

Case Study 3: KRI Crosses the Red Threshold but No Loss Occurs

A bank monitors system downtime as a KRI.

Downtime exceeds the bank's red threshold during a month, but no financial loss is recorded.

The business head argues that no action is necessary because no loss occurred.

Analysis

The conclusion is incorrect.

The KRI indicates heightened exposure and possible control or capacity weakness.

The bank should examine:

• cause of downtime;

• impact on critical operations;

• resilience and redundancy;

• repeated incidents; and

• required remediation.

CAIIB Lesson

A KRI is designed to trigger attention before loss necessarily occurs.

Case Study 4: Large Fraud with Insurance Recovery

A bank suffers an operational fraud loss.

Part of the loss is subsequently recovered from insurance.

For operational-risk analysis, the bank should separately understand:

• original gross loss;

• realised recovery;

• remaining net loss;

• event type;

• root cause; and

• control failure.

It should not record only the final net amount and forget the severity of the original incident.

CAIIB Lesson

Gross loss helps show event severity, while recovery shows subsequent loss reduction. Both are useful for risk analysis.

Case Study 5: Error Detected Before Payment

An employee enters incorrect payment details, but the checker identifies the mistake before funds leave the bank.

There is no actual financial loss.

The event should still be considered for internal risk learning because it provides information about:

• human error;

• effectiveness of maker-checker control; and

• possible process weaknesses.

CAIIB Lesson

No financial loss does not mean no operational-risk information.

CAIIB Exam Focus

Remember these high-value points:

• RCSA identifies risks and evaluates controls.

• Inherent risk is assessed before controls.

• Residual risk remains after considering controls.

• A control must be both properly designed and effectively operated.

• Green, amber and red risk zones are useful monitoring tools, but exact thresholds are institution-specific.

• KRIs provide information on risk exposure and control deterioration.

• KRIs can be leading or lagging.

• KRI and KPI are not identical.

• Crossing a KRI threshold does not necessarily mean a loss has occurred.

• Internal loss data records actual operational events and their financial impact.

• Loss data should include sufficient information to understand cause and control failure.

• Gross loss is measured before recoveries.

• Recovery should be distinguished from gross loss.

• Near misses can provide valuable risk information despite no realised loss.

• Root-cause analysis seeks to prevent recurrence.

• RCSA, KRI and internal loss data should feed information into one another.

• Loss experience inconsistent with an RCSA rating may require reassessment.

• Regulatory capital loss-data requirements should not be confused with the wider internal management of operational events.

• Under RBI's 2023 new Standardised Approach Directions, the specified minimum loss-data threshold is ₹1 lakh, but the Directions state that their implementation date is to be communicated separately.

Common Exam Traps

Trap 1: “Inherent risk means risk remaining after controls.”

Incorrect. Risk remaining after controls is residual risk.

Trap 2: “If a control exists, residual risk must be low.”

Incorrect. The control may be badly designed or ineffective.

Trap 3: “RCSA is performed only after a loss event.”

Incorrect. RCSA is a proactive risk-identification and assessment tool.

Trap 4: “A KRI predicts the exact operational loss that will occur.”

Incorrect. It provides risk-monitoring and early-warning information.

Trap 5: “KRI and KPI mean the same thing.”

Incorrect. KPI mainly measures performance; KRI mainly monitors risk.

Trap 6: “A red KRI must mean that financial loss has already occurred.”

Incorrect. The objective of a KRI is often to provide warning before a loss materialises.

Trap 7: “Only events with actual financial losses are useful for operational-risk management.”

Incorrect. Near misses can expose important control weaknesses.

Trap 8: “Insurance recovery means the original loss event can be ignored.”

Incorrect. The gross event remains important for understanding risk severity and control failure.

Trap 9: “The regulatory minimum loss-data threshold means banks should ignore smaller operational incidents.”

Incorrect. Regulatory dataset requirements and internal risk-management information serve different purposes.

Trap 10: “RCSA, KRIs and loss data should be analysed separately.”

Incorrect. The strongest risk framework uses each tool to validate and improve the others.

Memory Technique

Remember A–W–H:

A — RCSA = Assess: What can go wrong and what risk remains? W — KRI = Warn: Is risk moving toward an unacceptable level? H — Loss Data = History: What has actually happened?

For RCSA, remember:

Risk Before Controls = Inherent Risk

Risk After Controls = Residual Risk

For a case study, follow:

Identify Risk → Examine Controls → Check KRI → Review Events → Find Root Cause → Take Action
